Rheinhütte Pumpen Pump Typ RPROP – Axial flow centrifugal pump in metal

RPROP – Axial flow centrifugal pump in metal

Model: RPROP

Metals Axial flow pump

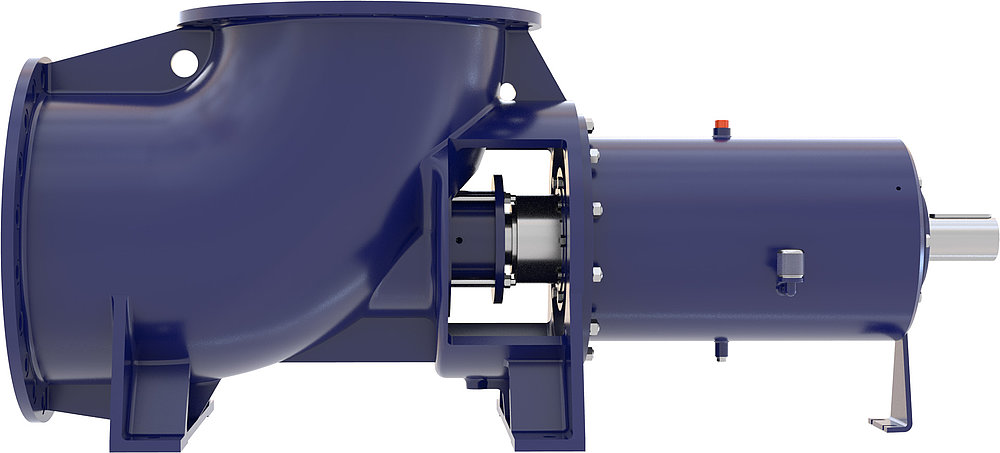

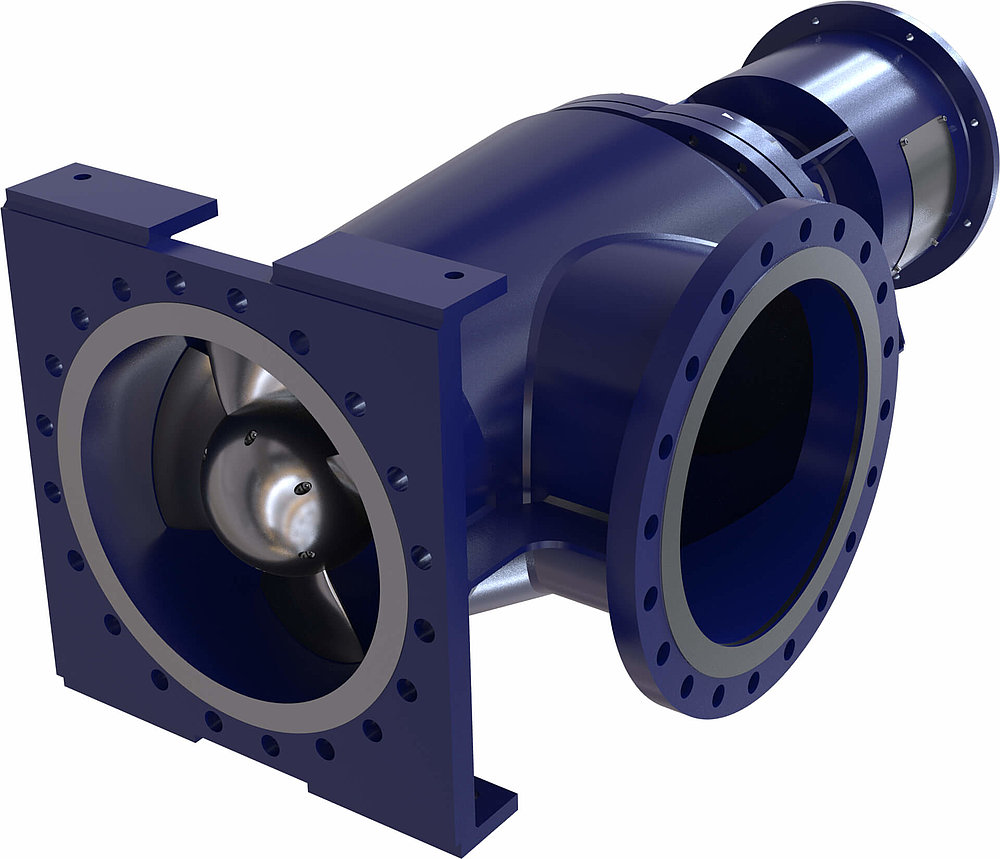

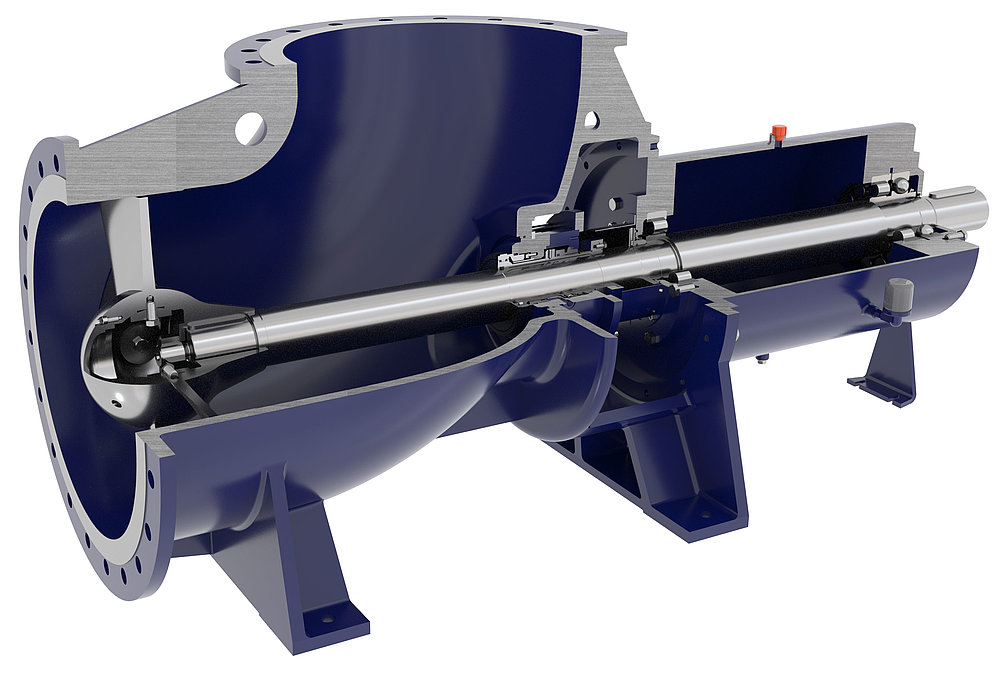

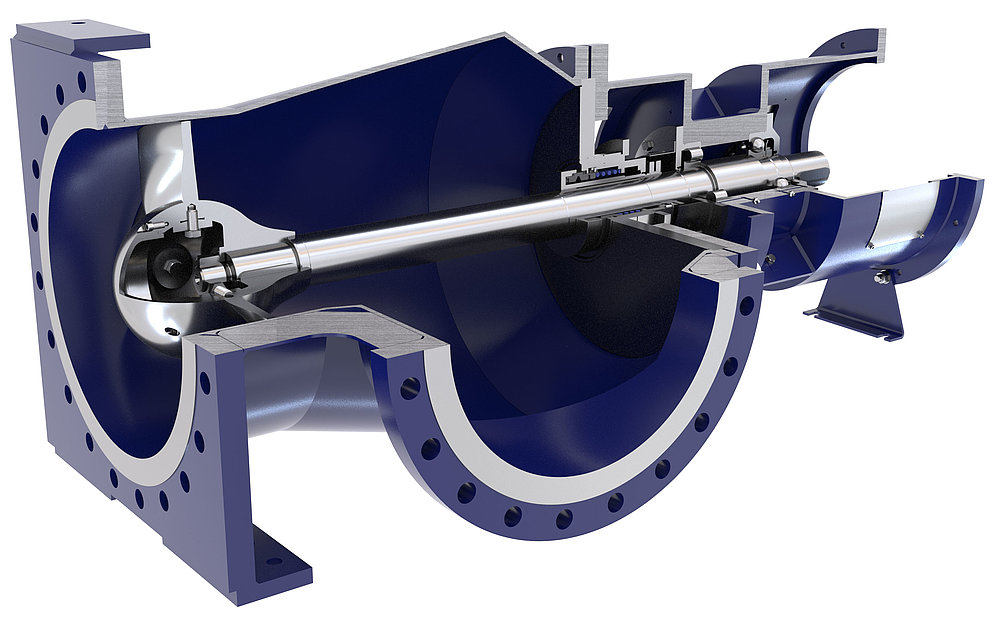

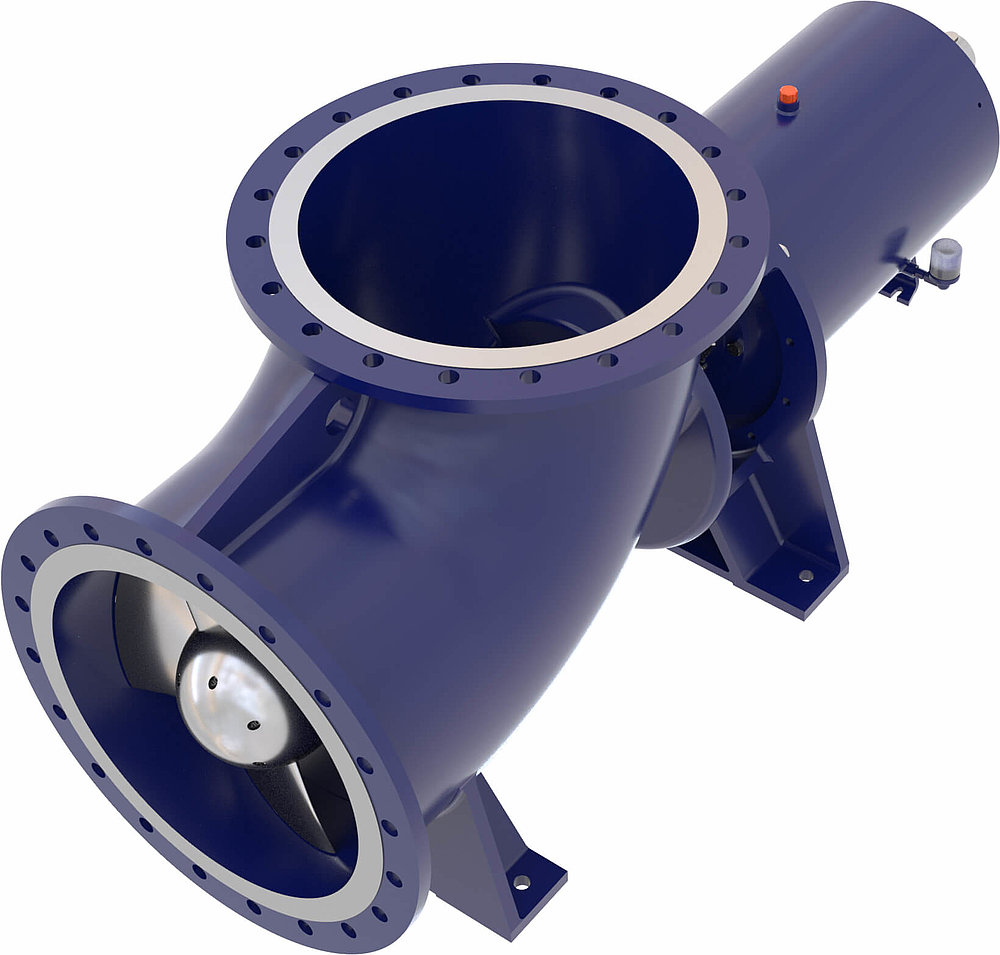

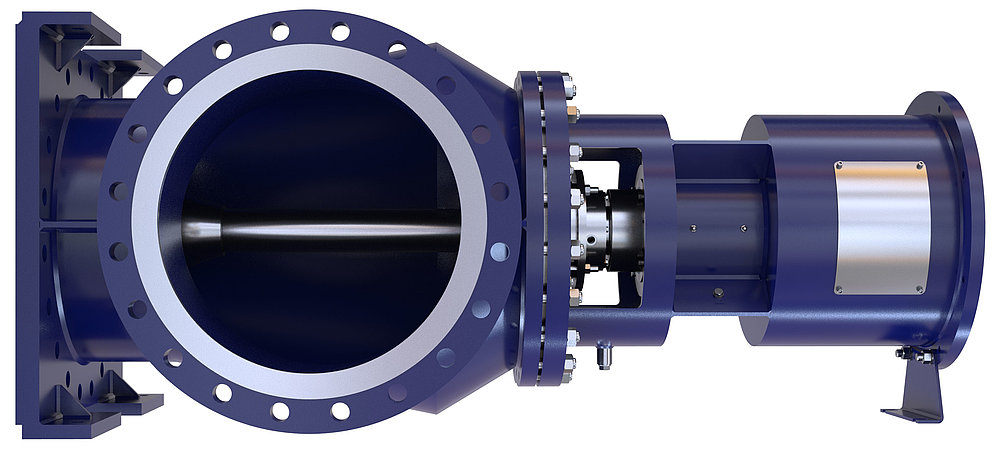

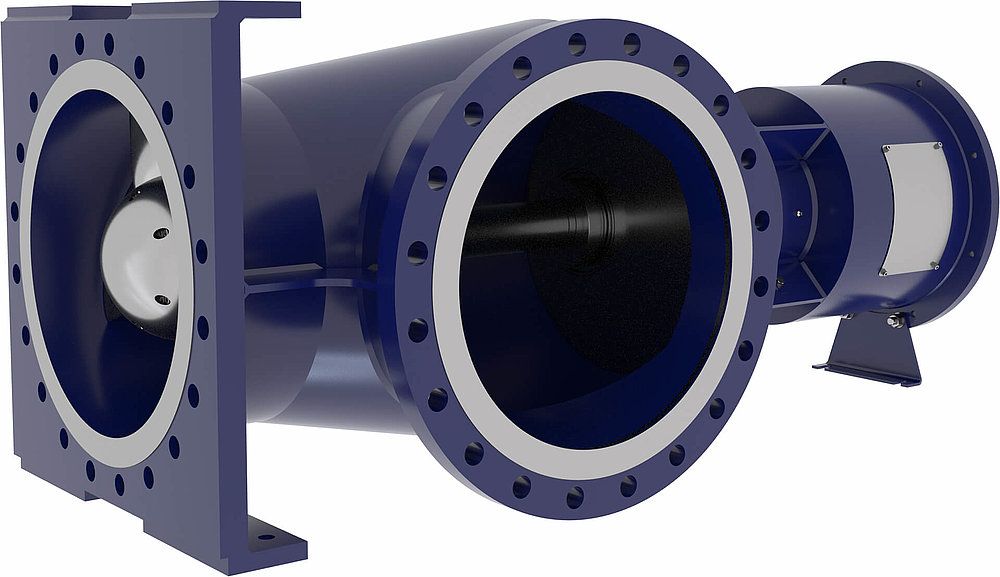

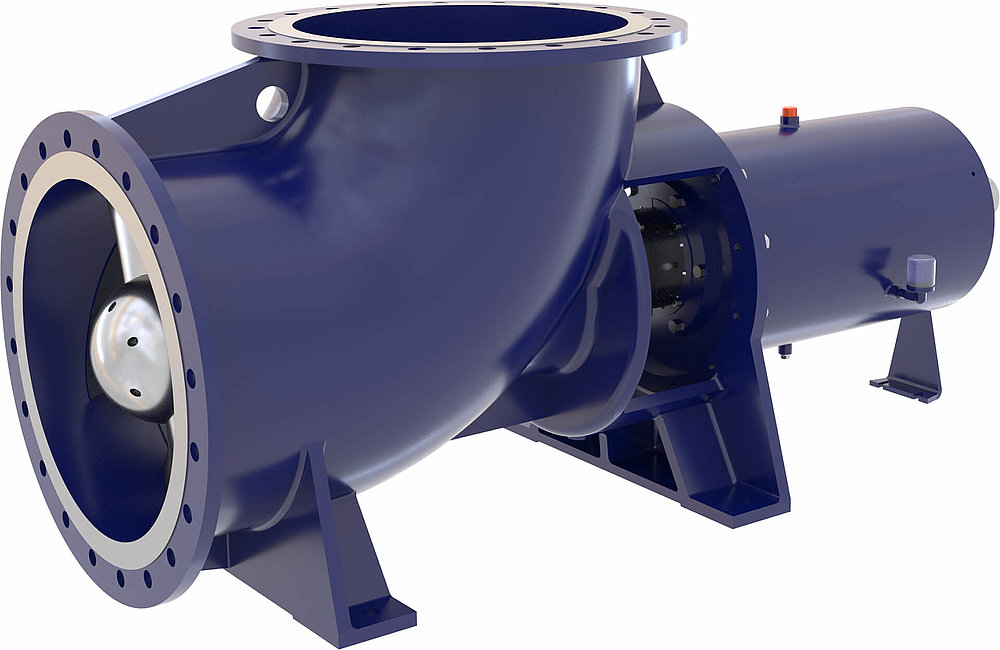

Pumps of type RPROP are horizontal, axial flow circulation pumps, which are fitted in standard with propeller impeller and could be executed in special cases also with inducer impeller. Additionally, there is a close-coupled design (RPROPF) available. The RPROPF can also be executed with propeller or inducer impeller, but the flow direction is only one-sided. This pump type is installed in evaporation plants, crystallisation plants, pulp and paper industries, plastic production, regeneration plant for spend acid and reaction solutions and production of titanium dioxide.

Technical Data

Design
Axial flow pump

Impeller
Adjustable propeller blades or inducer

Temperature
-20 °C to 150 °C (-4 °F to 302 °F)

Material
Metal

Delivery rate
Q_max. = 8.500 m³/h

Nominal pressure
up to 6 bar

Size
DN 300 - DN 700

Delivery head
H_max. = 7 m

Crystal suspensions, brine, seawater, cellulose mash, abrasive media, aggressive acids and alkaline solutions.

Fertilizer (DAP/NPK/TSP/MAP)
Titanium dioxide
Phosphoric acid
Sea water
Crystallization plant
Brine
Pulp industry

Norm
ISO 5199

Type
Horizontal, single-stage

Operating direction

Operation in both directions of flow is possible

Construction
Pipe elbow in welded or casted design (standard or FEM optimized)

Impeller
Adjustable propeller blades or inducer

Bearing lubrication
Oil lubrication

Installation versions
Base plate, base frame, steel structure or stilt mounting

Motor coupling

Direct coupled, with V-belt drive, with cardan shaft or with gear-box drive

Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)

Solid content limit value
approx. 35 %
