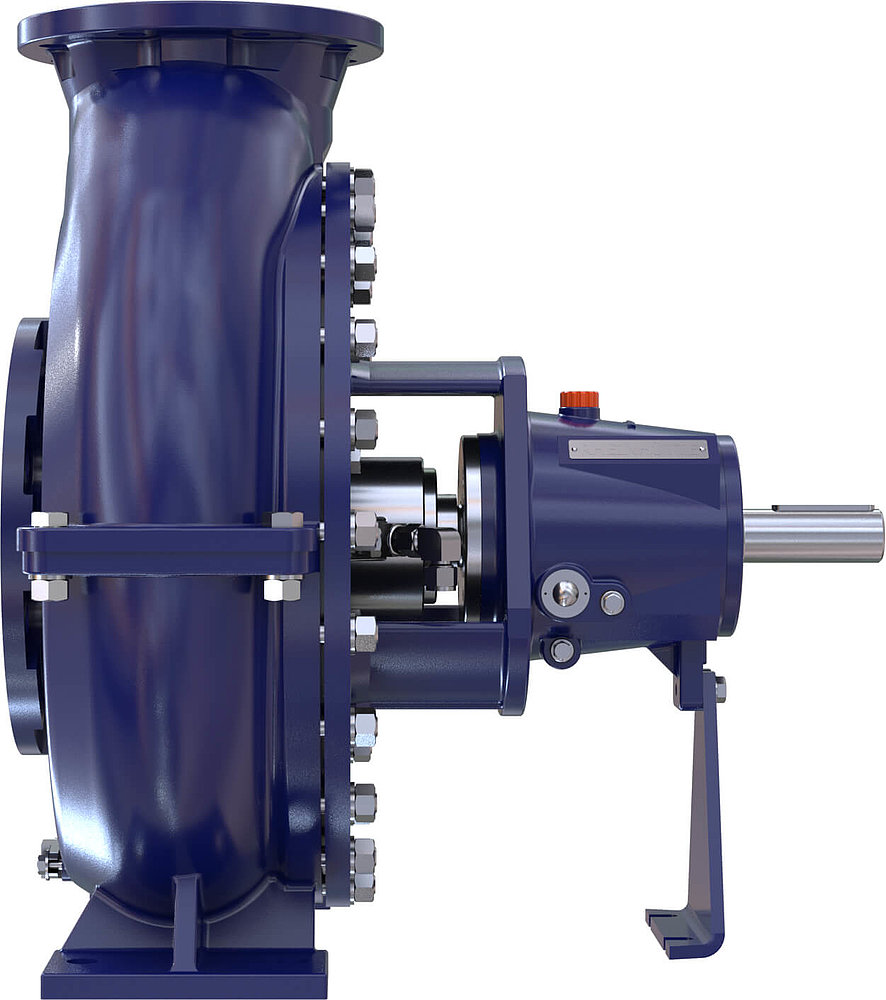

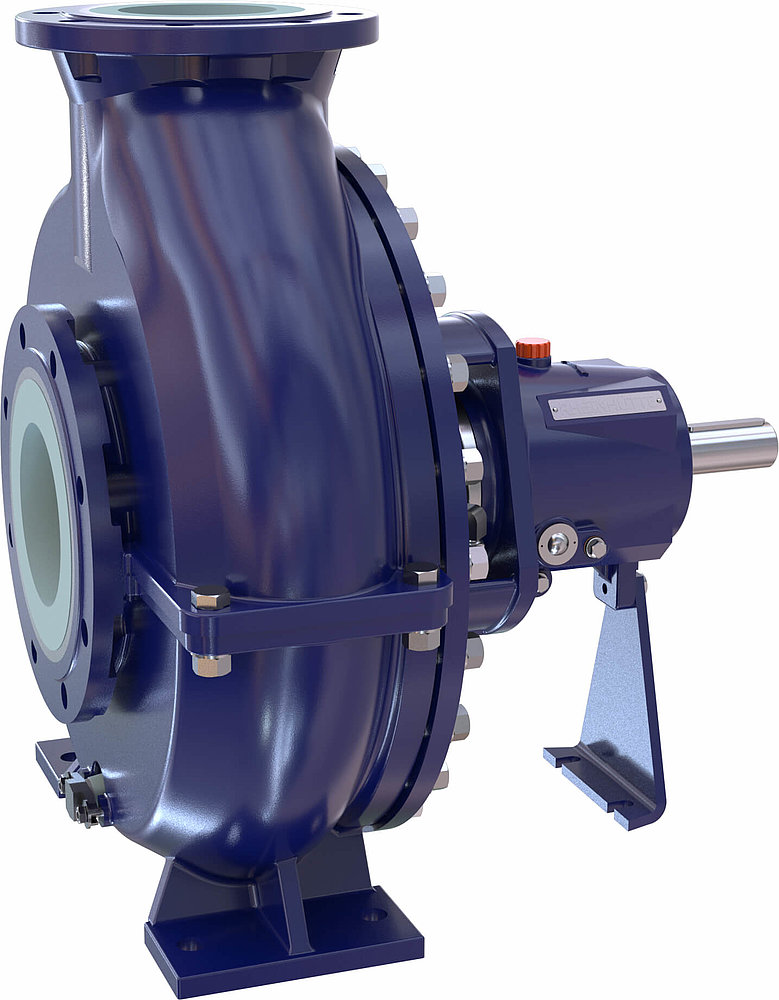

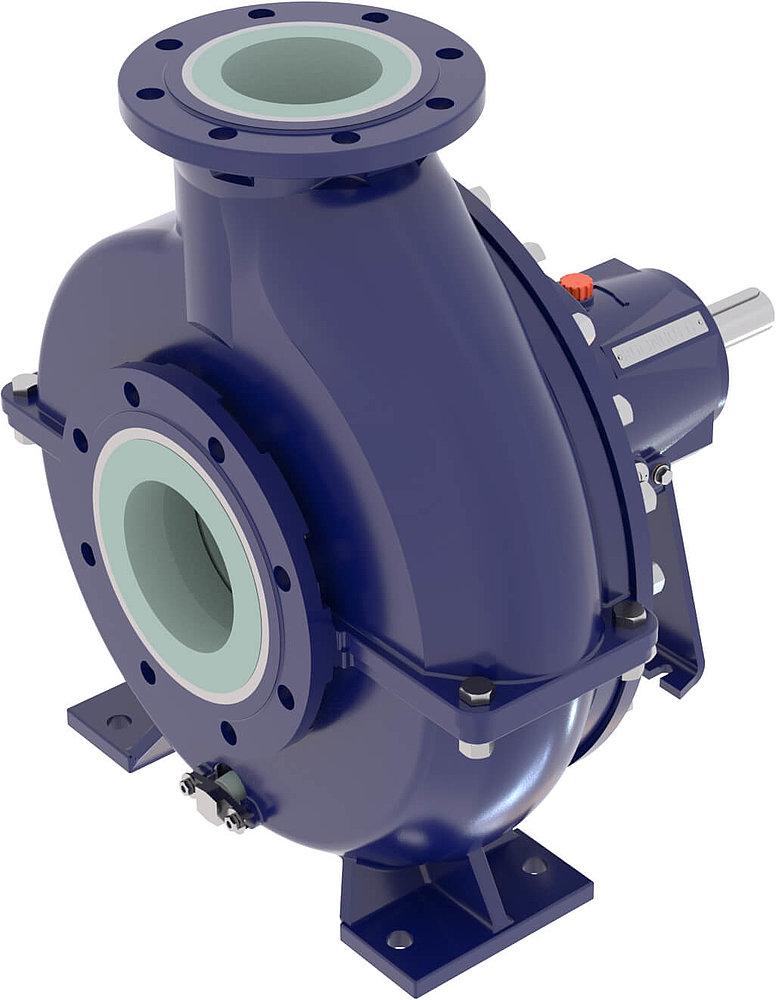

Rheinhütte Pumpen Pump Typ FNC – Standardized chemical pump in ceramic

FNC – Standardized chemical pump in ceramic

Model: FNC

Pumps of the FNC are horizontal, single-stage, end-suction, top-discharge centrifugal pumps, standardized to EN 22858, ISO 2858 and ISO 5199. The wear resistance and universal chemical resistance offers great advantages for use in corrosive and abrasive media. FNC pumps are used for handling chemically aggressive and/or abrasive liquids within the wide field of chemical processing and environmental technology.

Technical Data

Design
Horizontal cetrifugal pump

Impeller
Closed

Temperature
-40 °C to 120 °C (-40 °F to 248 °F

Material
Ceramics

Delivery rate
Q_max = 600 m³/h

Size
DN 32 - DN 150

Delivery head
H_max = 90 m

Chemically aggressive, even contaminated, media throughout the whole range of chemical processing technology, surface coating technology, environ-mental engineering and other areas of industry.

Chlor-Alkali Electrolysis
Sulphuric acid
Steel and Stainless steel pickles
Phosphoric acid
Nitric acid
Sea water
Waste incineration (flue gas cleaning)
Scrubber
Waste water
Hydrochlorid acid

Norm
ISO 5199, ISO 2858, EN 22858

Type
Horizontal, single-stage

Casing design
Single volute casing

Impeller
Closed

Bearing lubrication
Oil lubrication

Installation versions
Base plate, base frame or stilt mounting

Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)

Solid content limit value
approx. 20 %

Drain of volute casing
Flushing in differerent versions
Temperature and vibration monitoring
Flange connections according to international standards
Thermosyphon system
Quench system
Storage and priming tank
Pump accessories

Mechanical Seal

FRIKORUND®
