RCNKu+

Model: RCNKu+

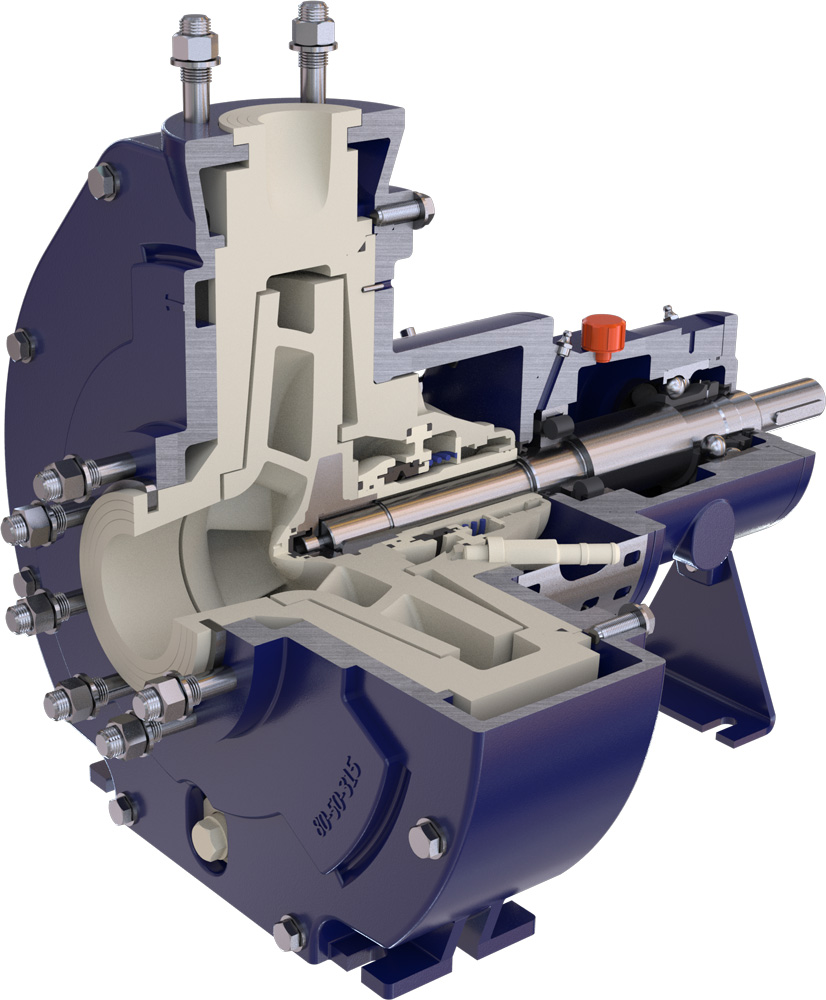

Pumps of the RCNKu⁺ type family are horizontal, single-stage, end-suction, top-discharge centrifugal pumps, standardized to EN 22858 and ISO 5199. The pumps are used for handling chemically aggressive and/or inflammable liquids within the wide field of chemical processing and environmental technology. The RCNKu⁺ with closed impeller is foreseen for clean liquids and fluids with a small content of solids.

Technical Data

Design
Horizontal centrifugal pump

Impeller
Closed

Temperature
-40 °C to 130 °C (-40 °F to 266°F)

Material
Plastics

Delivery rate
Q_max. = 400 m3/h

Nominal pressure
up to 16 bar

Size
DN 32 - DN 125

Delivery head
H_max. = 110 m

Chemically aggressive, even contaminated, media throughout the whole range of chemical processing technology, surface coating technology, environ-mental engineering and other areas of industry.
