Rheinhütte Pumpen Pump Typ RMKN – Magnetic drive pump in metal

RMKN – Magnetic drive pump, metal

Model: RMKN

Metals Horizontal centrifugal pump

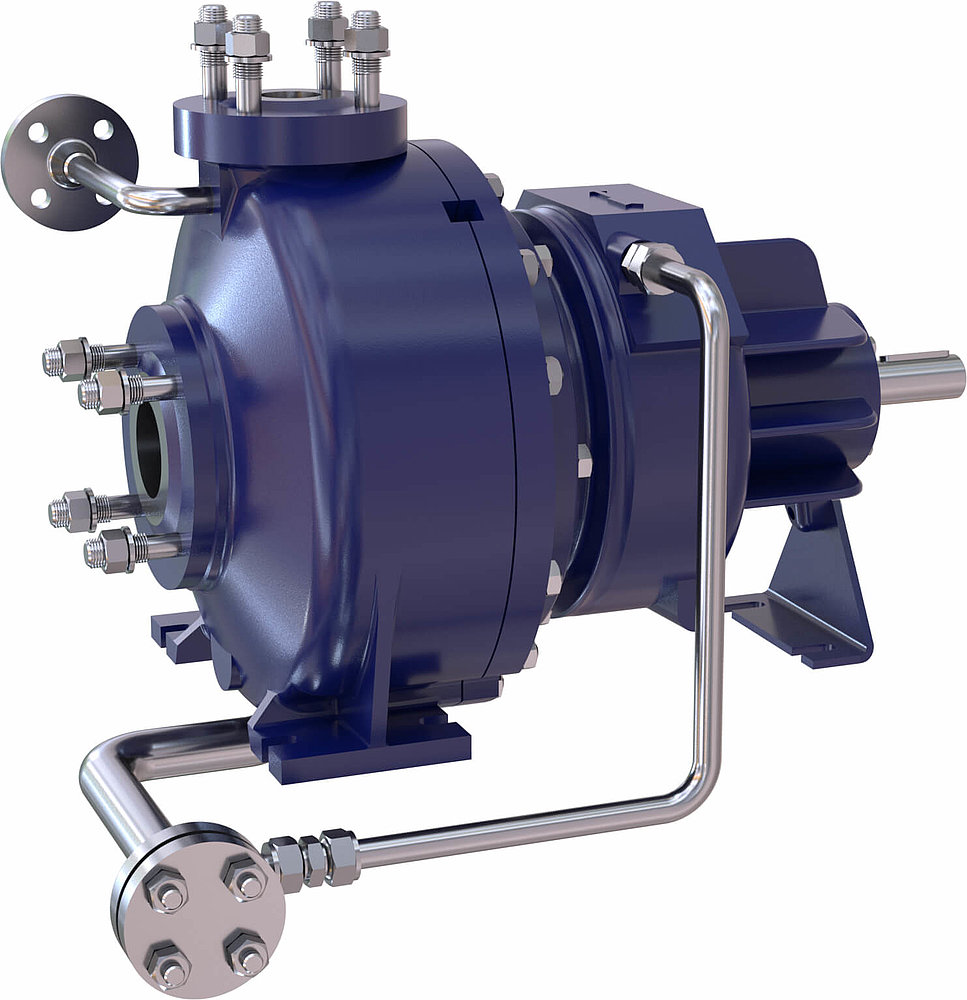

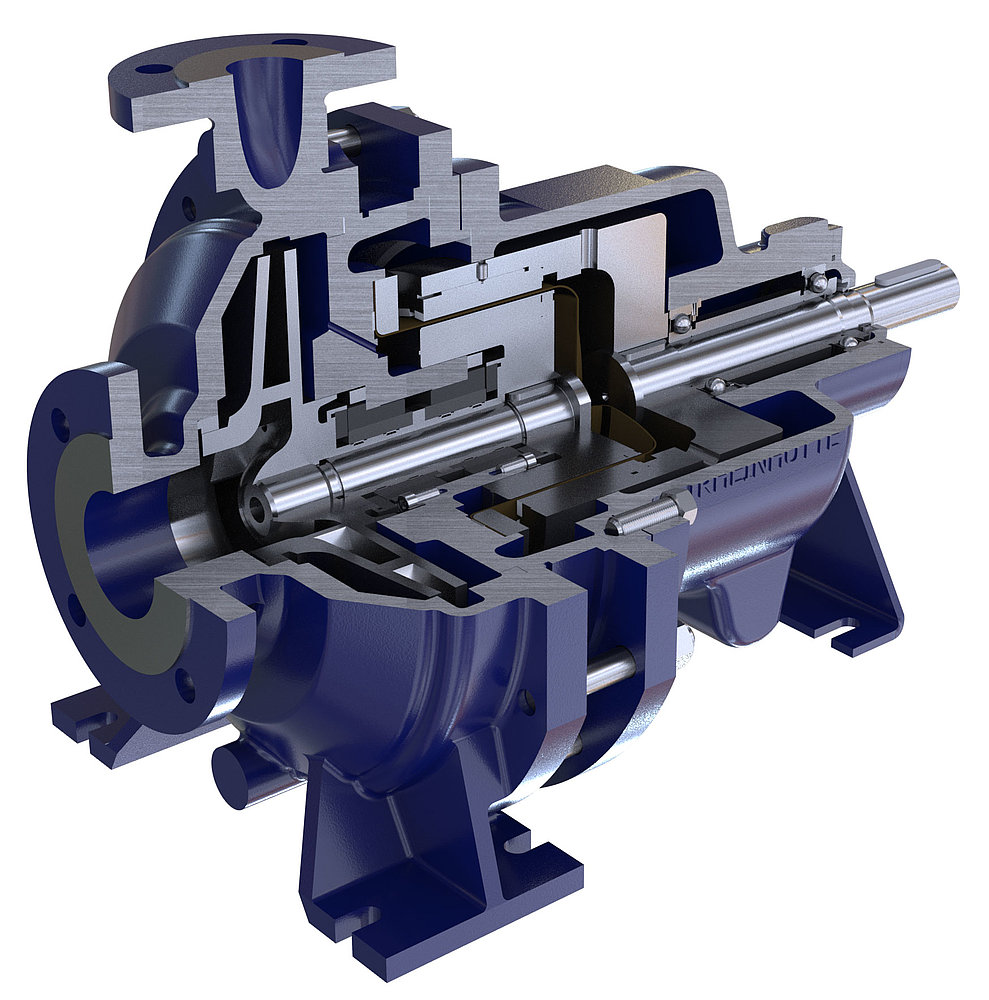

The RMKN is a horizontal, single-stage, end-suction, top-discharge centrifugal pump with magnetic coupling, dimensioned to comply with standards EN 22858 and ISO 2858.

The pumps are designed to meet the technical requirements for magnetic drive pumps as determined by VDMA 24279 and DIN EN ISO 15783. The scope of application covers the wide fields of chemical processing and environmental technology where chemically aggressive fluids of various concentrations at up to 250°C are to be handled. For applications where the medium is kept at a constant temperature

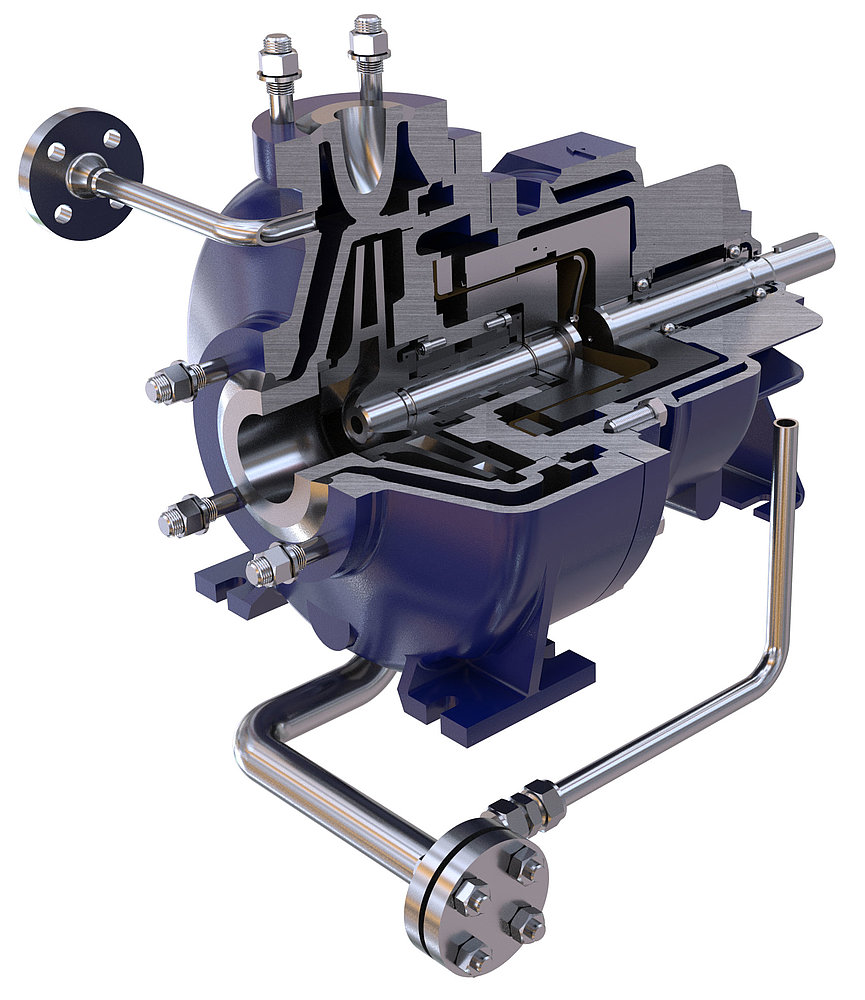

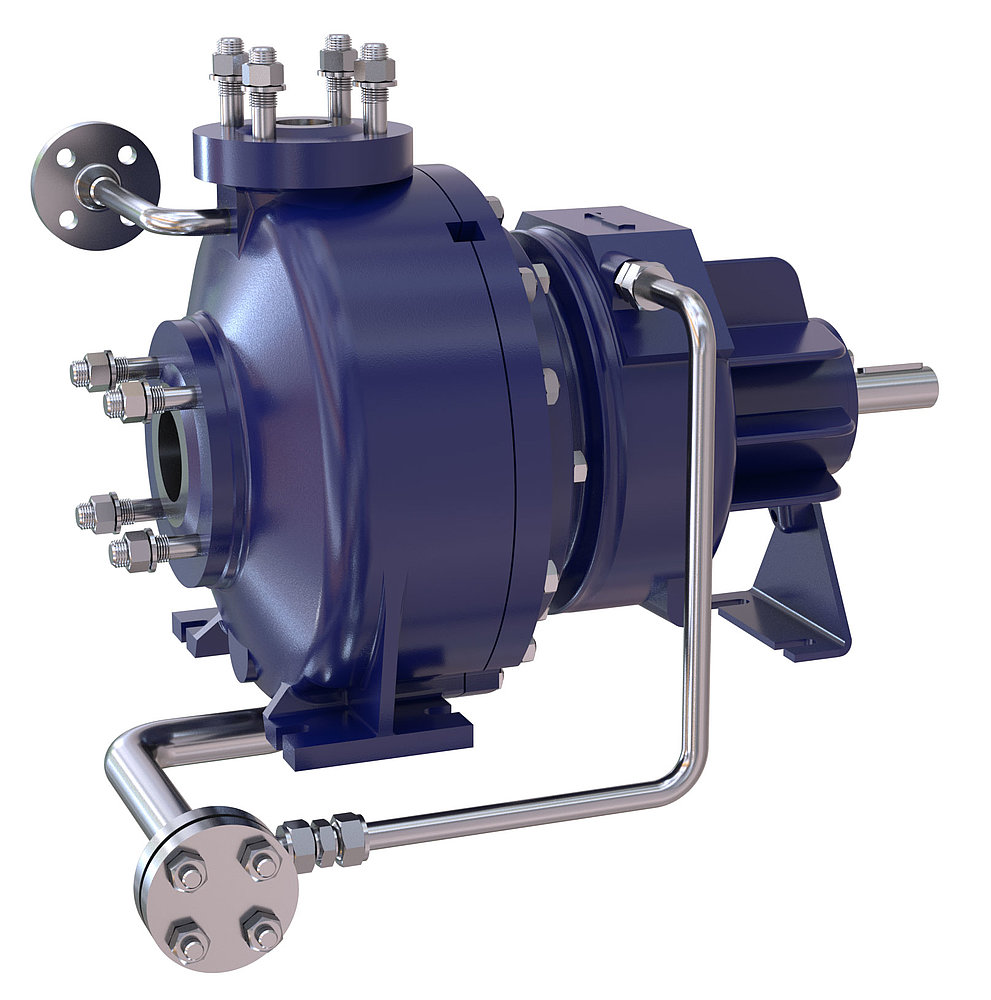

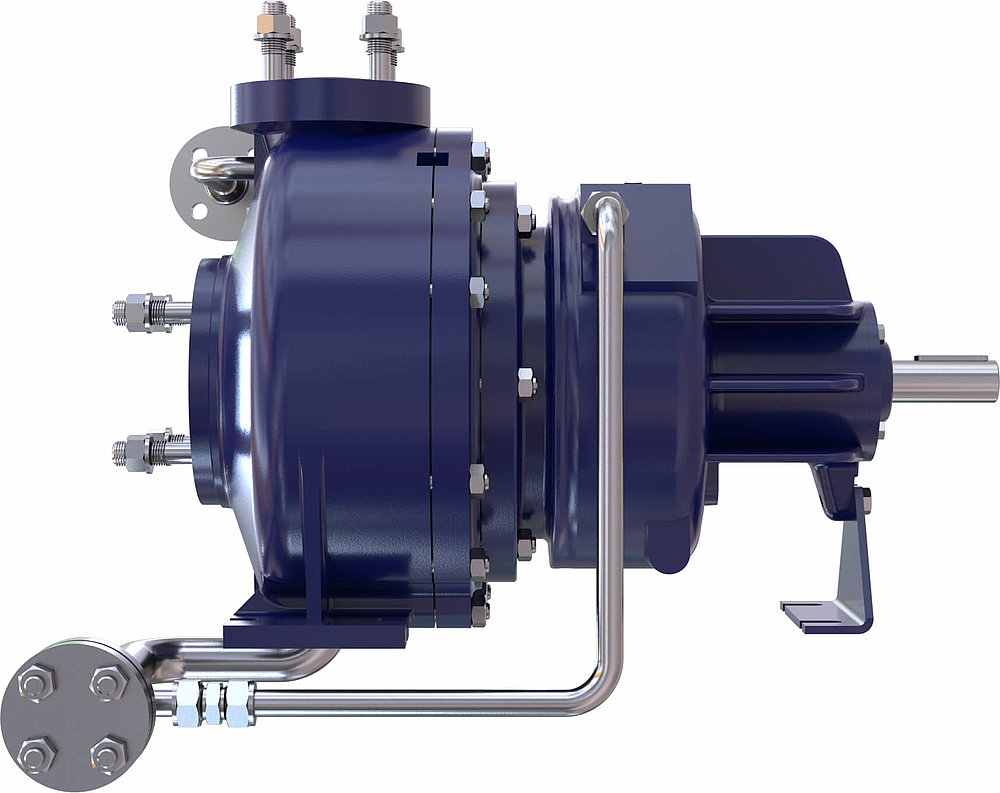

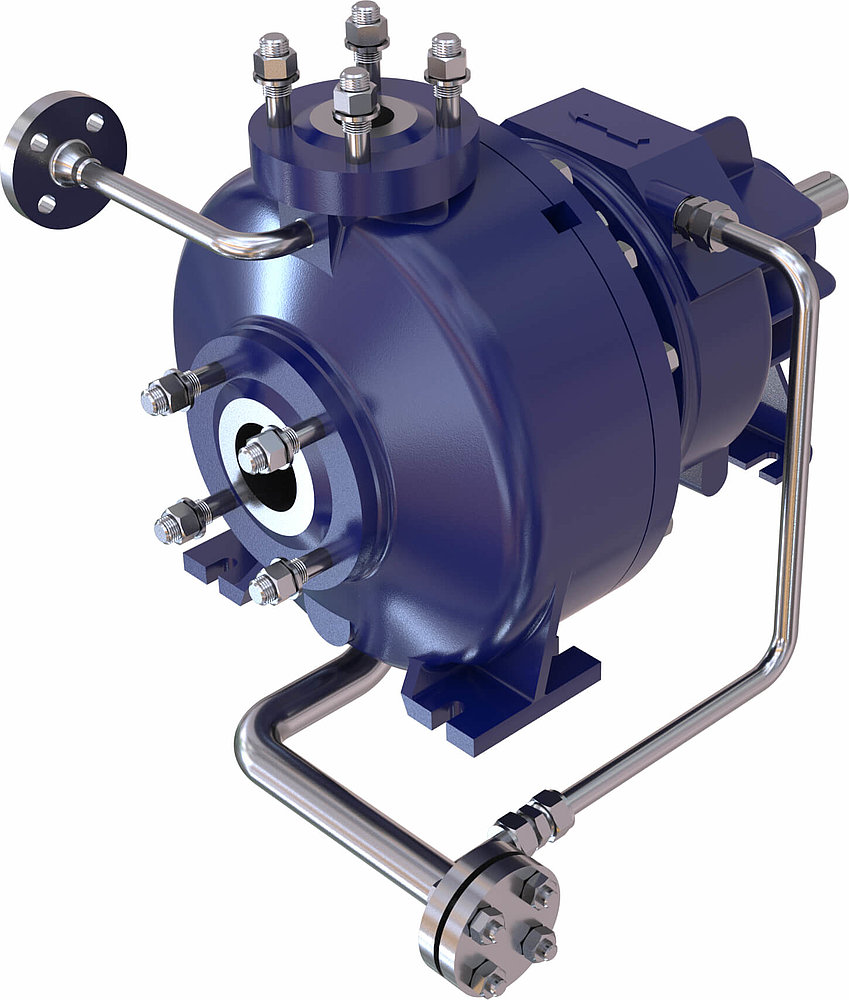

the RMKN is available in a heated version. By using heating chamber systems, the RMKN is also very suitable for difficult cases, such as conveying molten sulphur, pitch and tar.

Technical Data

Design
Horizontal cetrifugal pump

Impeller
Closed

Temperature
-40 °C to 250 °C (-40 °F to 482°F)

Material
Metal

Delivery rate
Q_max. = 500 m³/h

Nominal pressure
up to 16 bar

Size
DN 25 - DN 150

Delivery head
H_max. = 150 m

Aggressive, especially toxic, highly flammable, explosive or foul smelling media. In general all liquids that must not get into the atmosphere during the pumping process.

Molten sulphur
Sulphuric acid
Chemical industry
Phosphoric acid
Nitric acid

Norm
ISO 5199, ISO 15783, ISO 2858, EN 22858

Type
horizontal, single-stage

Construction
back-pull-out

Casing design
Single or double volute casing

Impeller
Closed

Bearing lubrication
Lifetime grease lubrication

Sleeve bearing lubrication

By pumping medium

Installation options
Base plate, base frame or stilt mounting

Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)

Solid content limit value
approx. 2 %

Flange motor design (RMKNF)
Inducer
Heated version
Drain of volute casing
Flushing in different versions
Temperature and vibration monitoring
Flange connections according to international standards
Leakage monitoring
External lubrication and cooling circuit
Secondary sealing
Storage and priming tank
Pump accessories

Magnet Coupling

Alloy C1 (2.4686)
Titan (3.7031)
Titan Pd (3.7032)
Nickel (2.4170)
Ferritic stainless steel 1.4136S
Austenitic stainless steel 1.4306S
Austenitic stainless steel 1.4361
Austenitic stainless steel 1.4408
Duplex 1.4517
Fully austenitic special stainless steel R3020
High austenitic stainless steel 1.4529S
