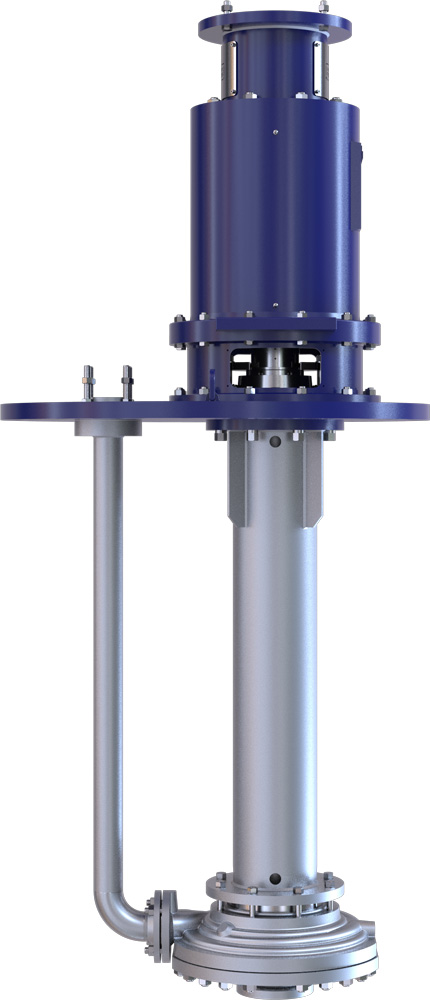

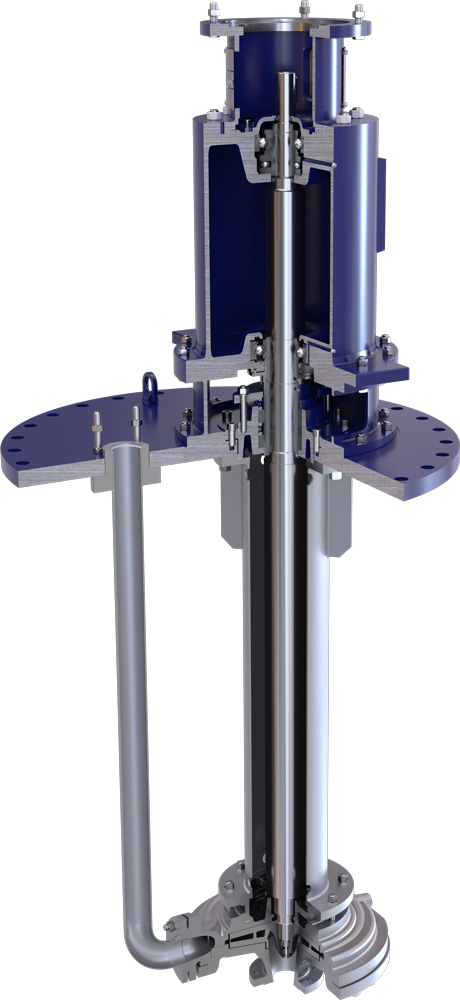

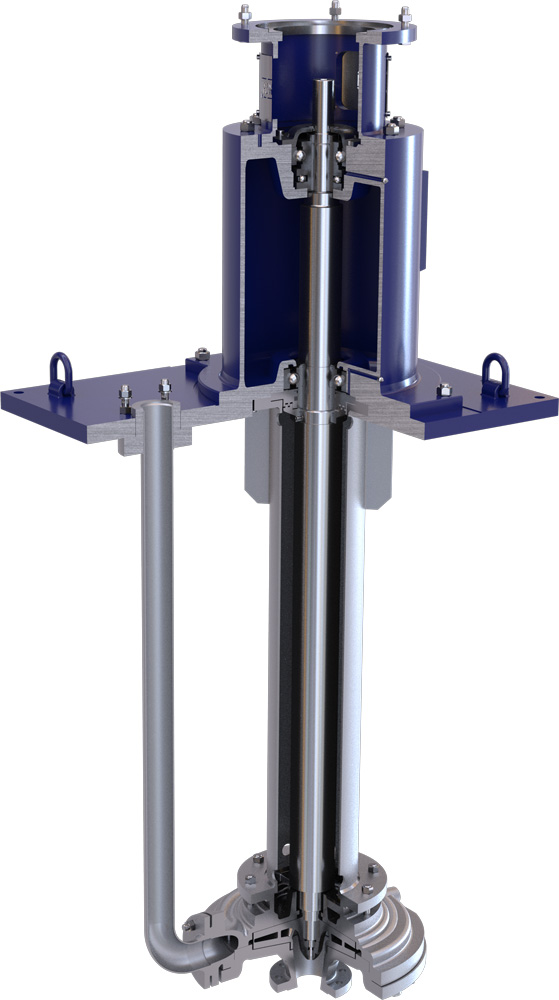

RCEV - Vertical chemical centrifugal pump in metal
The decision whether to use an open or closed impeller depends heavily on the type of the solids. The RCEV is used to convey mechanically contaminated, corrosive or neutral liquids such as phosphoric acid, highly contaminated sulphur, titanium dioxide slurries, copper dissolution acids as well as liquids that cannot tolerate localised heating by sliding bearings, e.g. concentrated ammonium nitrate solutions, DNT mixtures.
Technical Data
Design
Vertical centrifugal pump
Impeller
Closed or open
Temperature
-40 °C to 200 °C (-40 °F to 392 °F)
Material
Metal
Delivery rate
Qmax. = 900 m3/h
Nominal pressure
up to 10 bar
Size
DN 32 - DN 300
Delivery head
Hmax. = 85 m
Depth
up to 2,00 m (5.56 ft)
Aggressive, plus abrasive and corrosive liquids and slurries such as e.g. heavily contaminated sulphur , phosphate mashes, titanium dioxide slurries, copper digestion acids, crude tar, and liquids sensitive to local heating from sleeve bearing.
Phosphoric acid
Pitch and tar
Media containing solids
Contaminated sulphur
Norm
ISO 5199
Type
Vertical, single-stage
Construction
Cantilever-Design
Casing design
Single or double volute casing
Impeller
Closed or open
Bearing lubrication
Grease lubrication
Pump installation:
wet-installed
Installation options
base plate with tank or steel structure
Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)
Solid content limit value
approx. 30 %

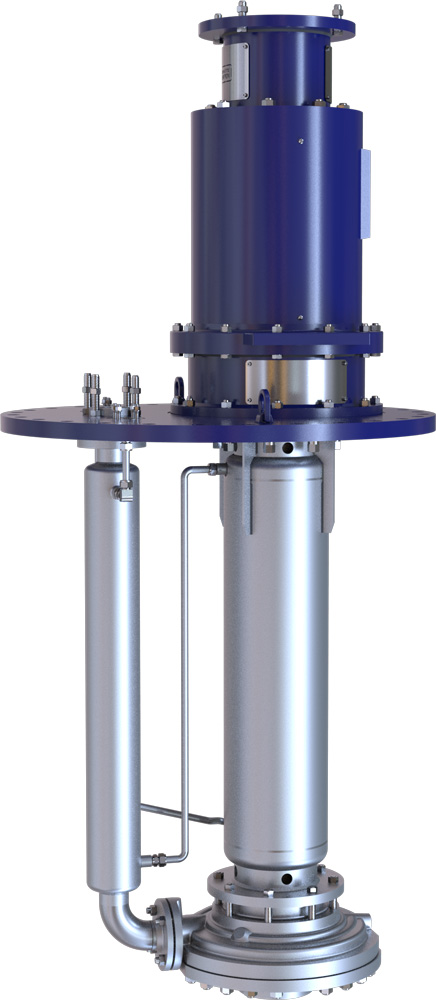

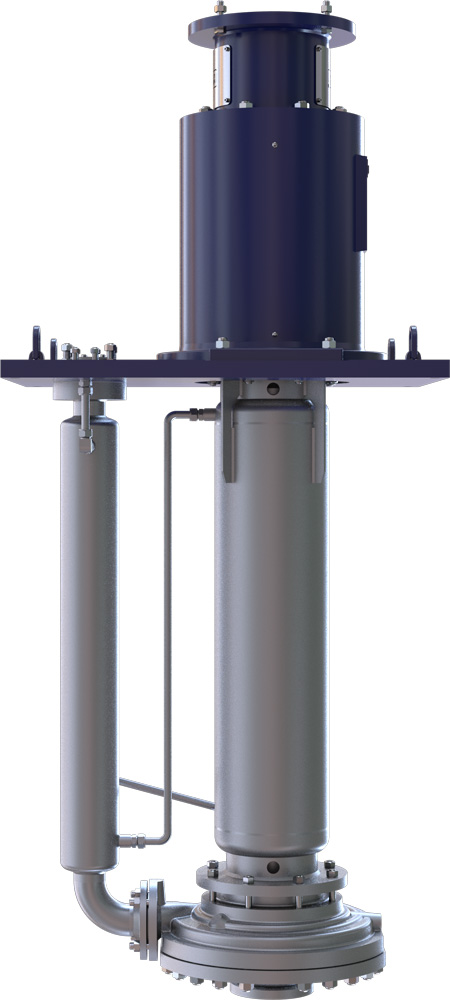

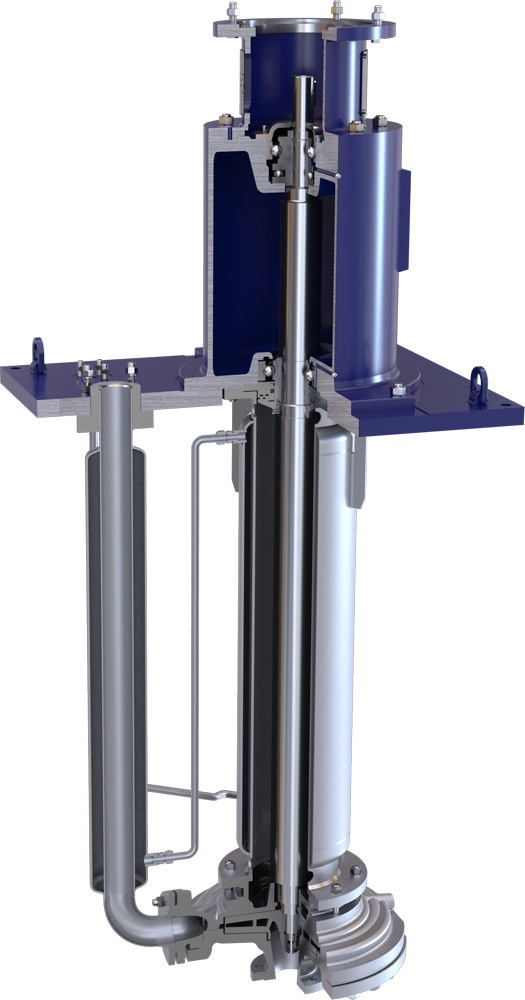

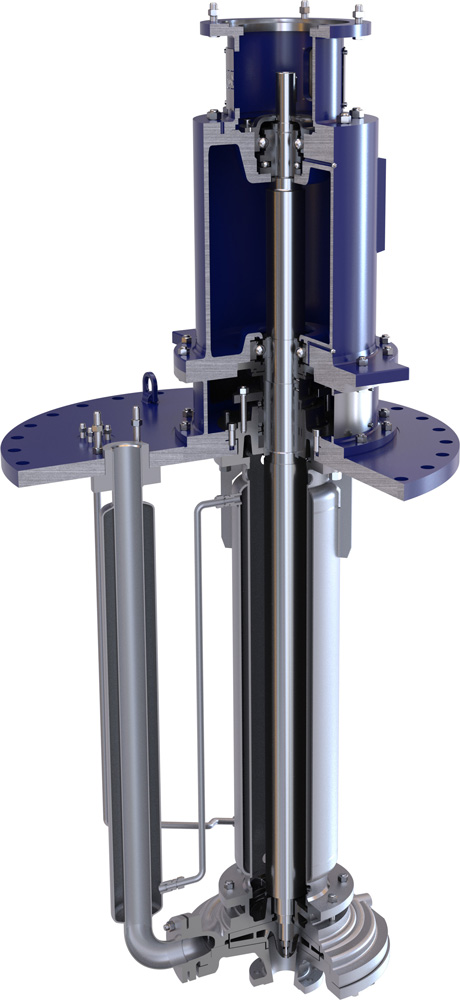

- Heated version
- Temperature and vibration monitoring
- Flange connections according to international standards
- Suction tube and/ or suction strainer
- Pump accessories
- Ferritic cast steel 1.0619
- Ferritic stainless steel 1.4136S
- Austenitic stainless steel 1.4306S
- Austenitic stainless steel 1.4408
- Duplex 1.4517
- Fully austenitic special stainless steel R3020
- High austenitic stainless steel 1.4529S
- High Alloy Cast Steel V5700 (0.9650)
- Higher austenitic stainless steel 1.4652S
