Rheinhütte Pumpen Pump Typ RKuV – Chemical centrifugal pump in plastic

RKuV – Chemical centrifugal pump in plastic

Model: RKuV

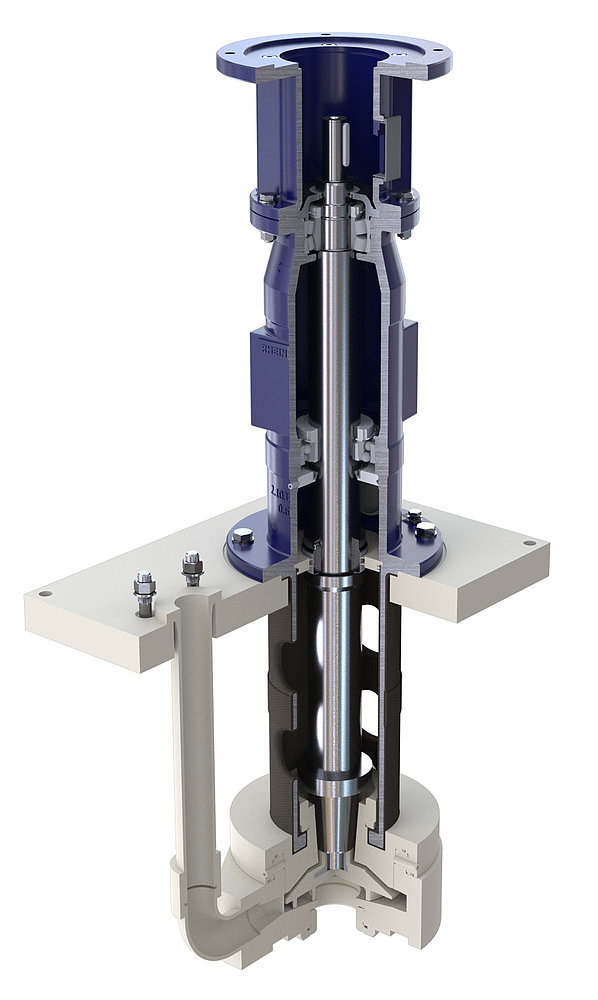

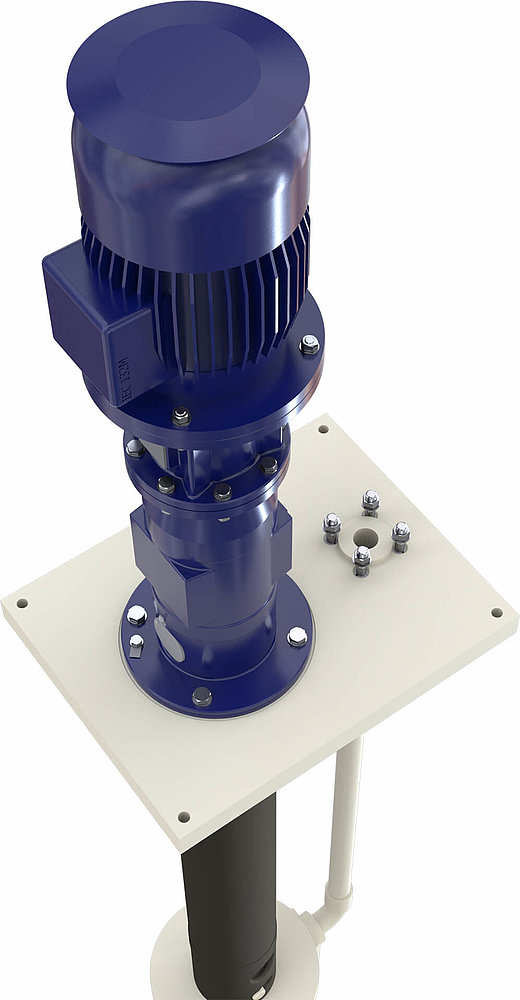

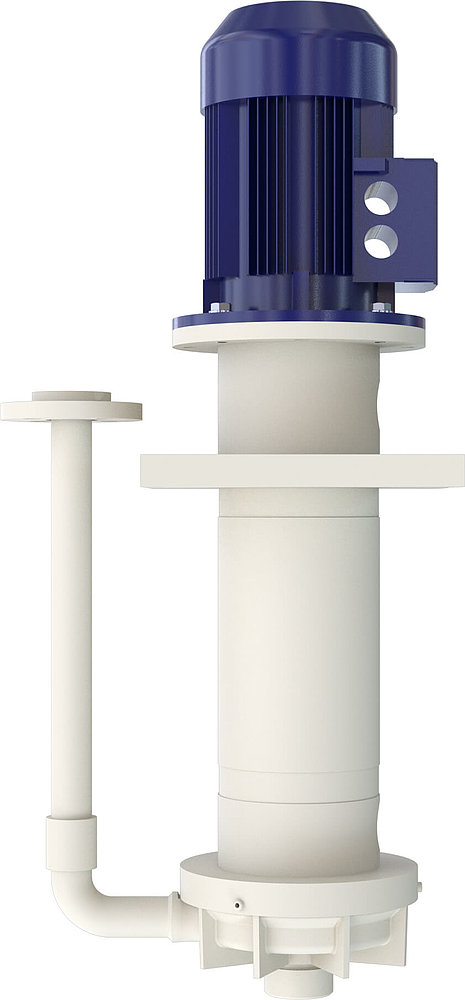

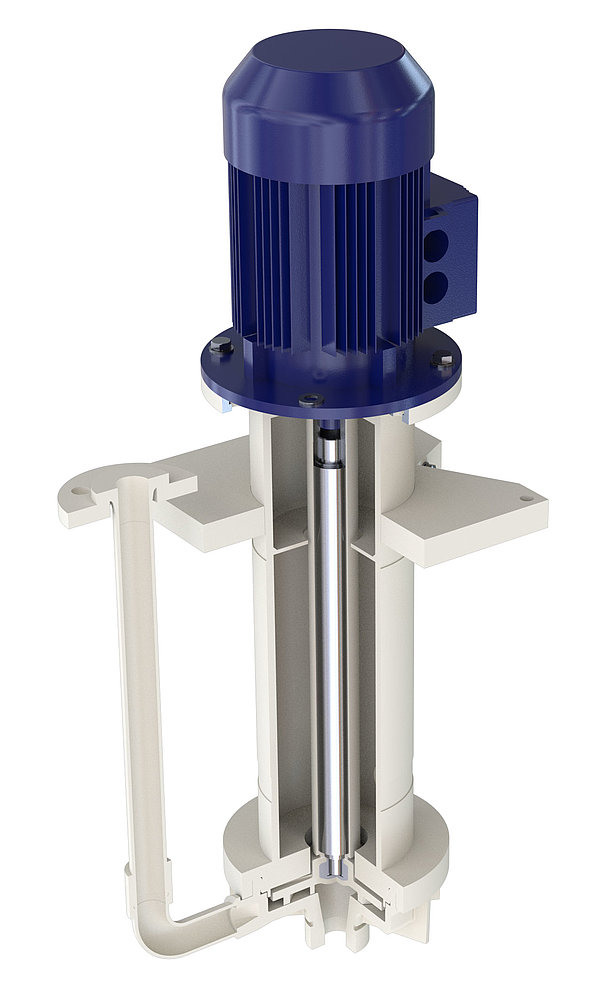

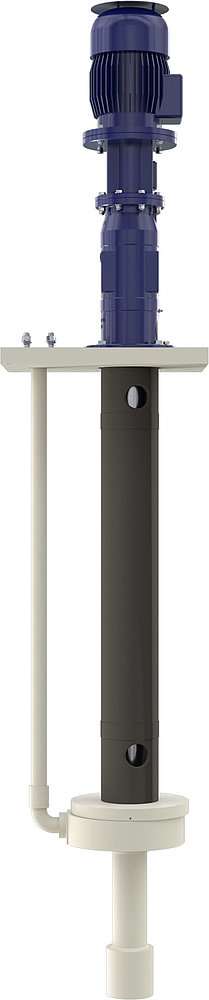

The vertical centrifugal pump RKuV has been specially developed for pumping aggressive media that are contaminated with solids or that crystallize out. The series is insensitive to dry running and operation against closed slide valves, as there is no plain bearing in the pumped medium. The series is also available as lightweight design RKuVL.

Technical Data

Design
Vertical centrifugal pump

Impeller
open or free-flow impeller (Type RKuVF)

Temperature
-40°C to 100°C (-40 °F to 212 °F)

Material
Plastics

Delivery rate
Q_max.= 120 m³/h

Nominal pressure
up to 10 bar

Size
DN 32 - DN 2050

Delivery head
H_max. = 60 m (197 ft)

Depth
up to 1.80 m (5.90 ft)

Aggressive liquids, laden with solids, such as contaminated acids, alkaline solutions and chemical effluents and also media with a tendency to crystallise.
